TIME Scylon Service Parts

Complete spares list for your TIME Scylon Frameset.

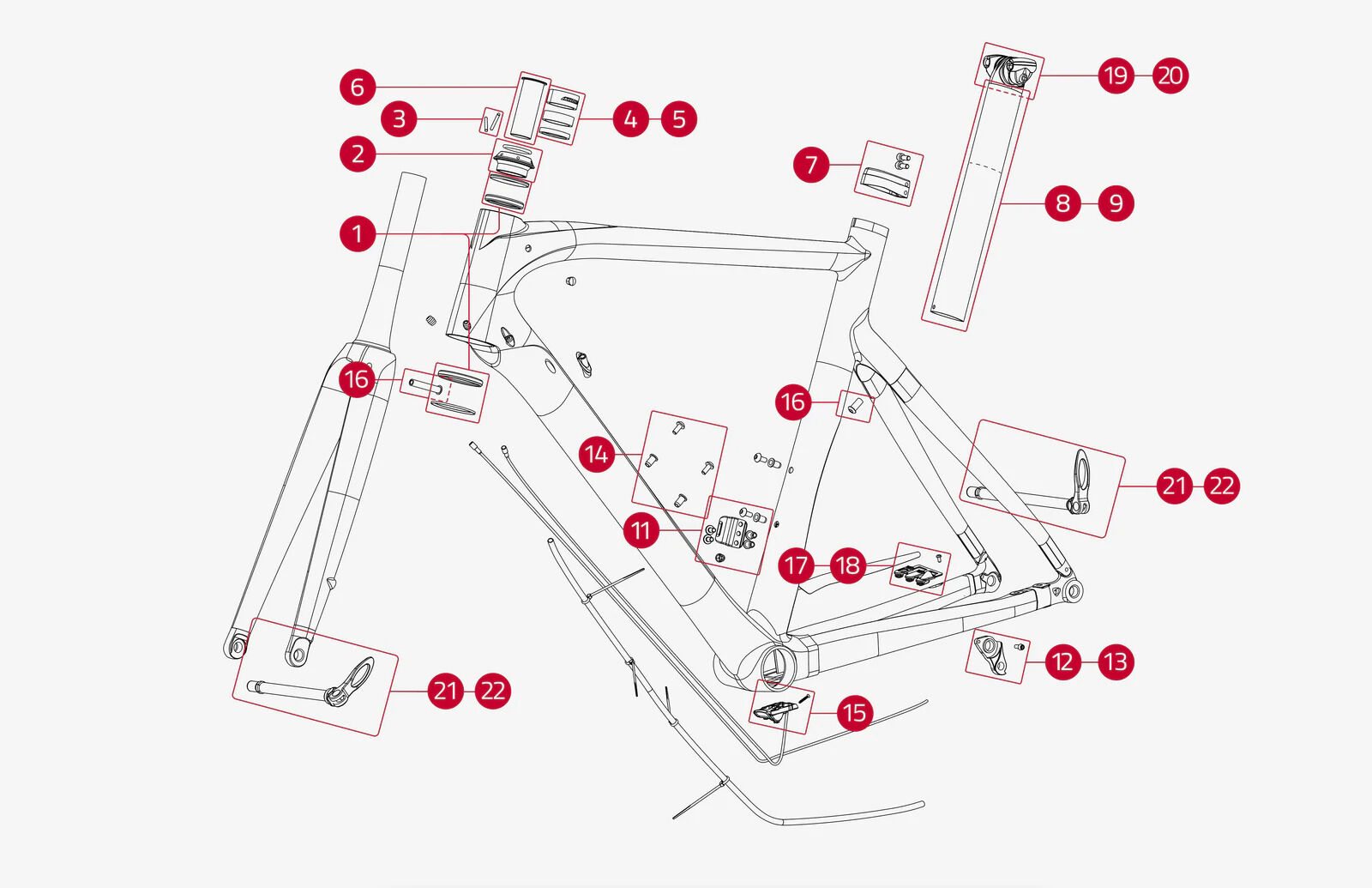

The master diagram shows the small part kits we supply. Please reference the chart below if you need additional information.

Diagram	Part Number	Name	Items Per Kit
1	90001801	Headset Bearings	4 PCS
2	90001802	Quickset	2 PCS
3	90001803	Quickset Adjustment Tool	2 PCS

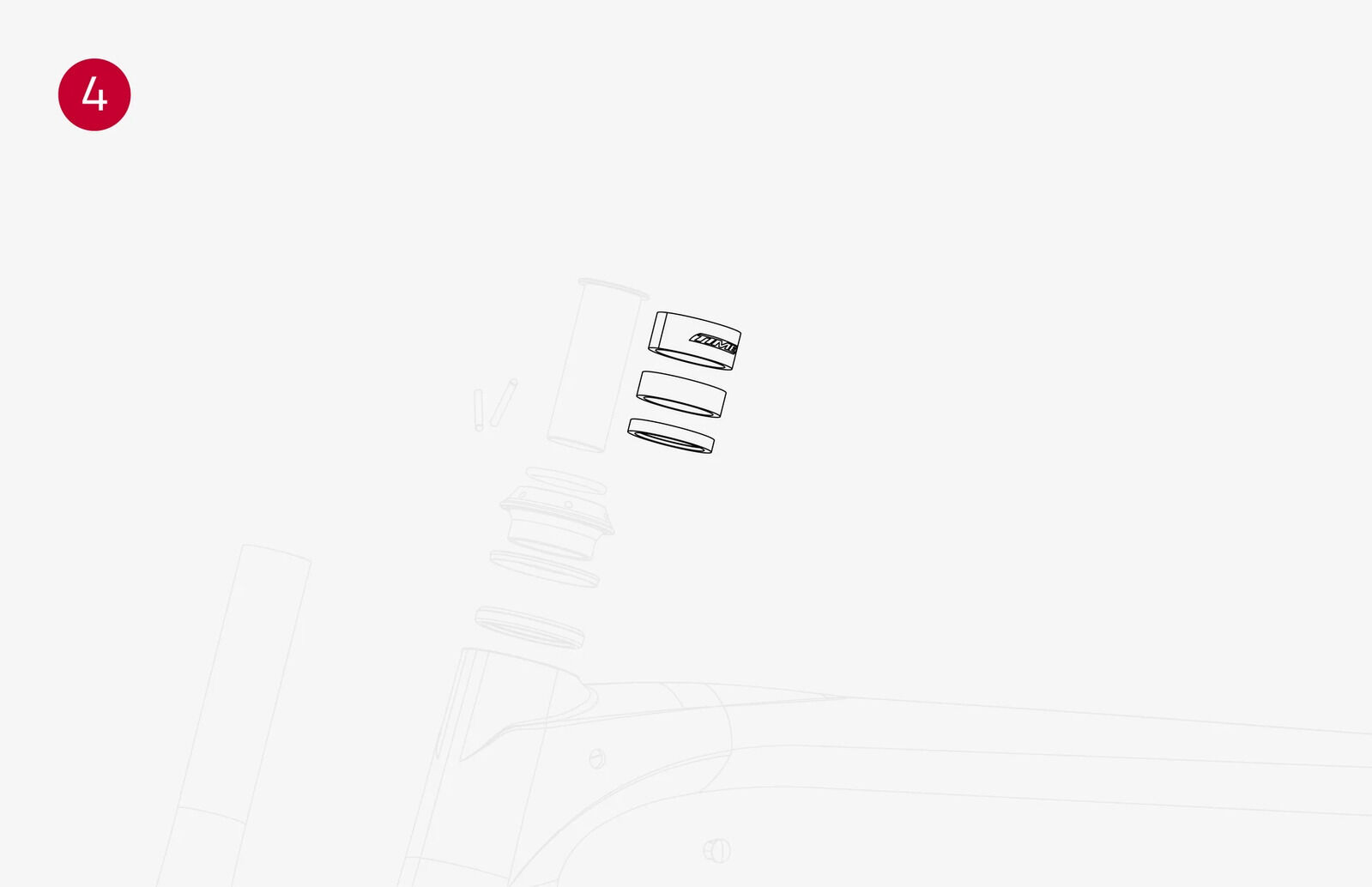

4	90001804	Gloss Shims	3 PCS
5	90001805	Matte Shims	3 PCS
6	90001806	Quickset Top Cap	1 PCS
7	90001807	Seat Clamp	3 PCS
8	90001808	Seatpost	1 PCS
9	90001809	Translink Seatpost	1 PCS
10	90001810
11	90001811	Front Derailleur Hanger	6 PCS
12	90001812	Rear Derailleur Hanger Disc	2 PCS
13	90001813	Rear Derailleur Hanger Rim	2 PCS
14	90001814	H2O Bolt and Nut	4 PCS
15	90001815	Bottom Bracket Cable Guide	2 PCS
16	90001816	Brake Nuts	2 PCS
17	90001817	Electric Plug	8 PCS
18	90001818	Mechanical Plug	6 PCS
19	90001819	Saddle Cups for Carbon	2 PCS
20	90001820	Saddle Cups	2 PCS
21	90001821	Thru Axle Front/Rear Suntour Qloc	2 PCS
22	90001822	TIME Thru Axles F/R	2 PCS
